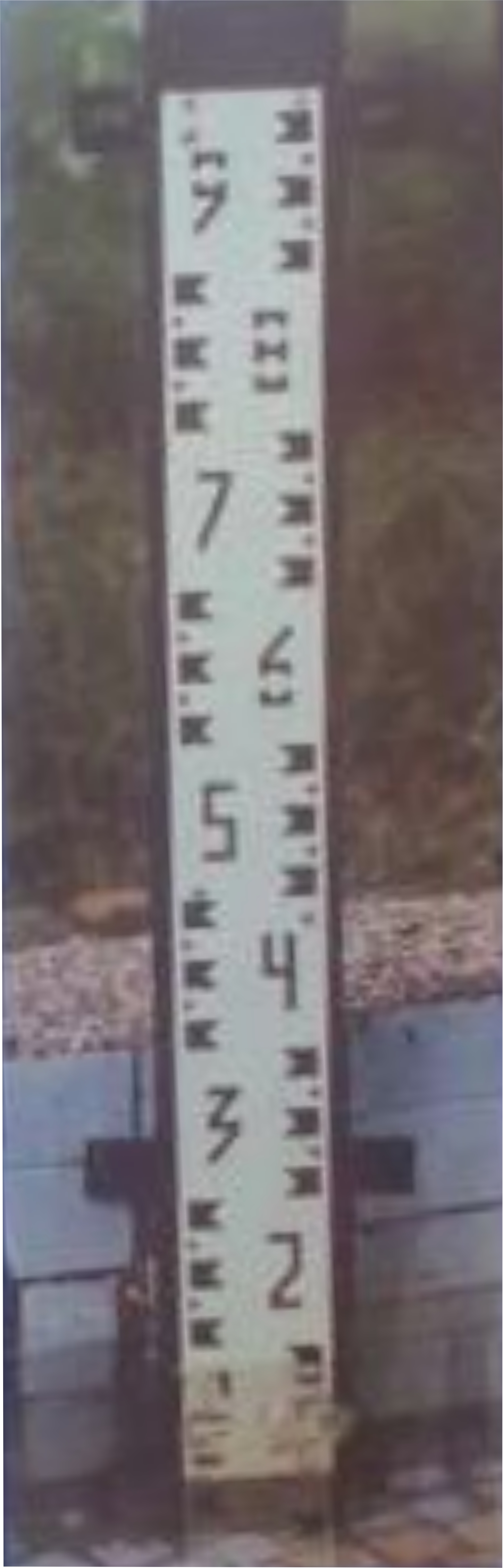

RGO1 gages are intended for water level observation in open water channels and reservoirs and are manufactured according to DD.
SPECIFICATION.
RGO1 gages are used outdoor, in water, around-the-clock and during the long-term vegetation period:
- Water temperature +5 °С to +30 °С;
- Ambient temperature -30 °С to +50 °С;
- Relative humidity up to 100%;
- Mean life time – at least 8 years.
| Indication range, m. | Dimensions, mm, max.: | Weight, kg, max.: |
|---|---|---|
| 0 to 0,5 | 720 | 3,1 |
| 0 to 1,0 | 1220 | 4,8 |
| 0 to 1,5 | 1720 | 6,8 |
| 0 to 2,0 | 2220 | 8,8 |
| 0 to 2,5 | 2720 | 10,5 |
| 0 to 3,0 | 3220 | 12,6 |
| 0 to 3,5 | 3720 | 14,3 |
